Does installing EvaraAMP interrupt the circuit?

No. A split-core current transformer closes around the existing supply line, so the circuit is never broken.

What does it measure?

3-phase current, voltage, power, power factor and energy, from 0 to 400 A with an external CT, at 1% typical accuracy, every 1 to 60 seconds.

What faults does it catch?

Overload, underload, phase loss and imbalance, with alerts by app, SMS or email the moment a signature appears.

IoT motor current and energy monitoring for pumpsEvaraAMP

Name: EvaraAMP
Brand: EvaraTech

Pump health & energy doctor

Clamp-on current sensing that watches pump electrical health and warns before failure.

How it works

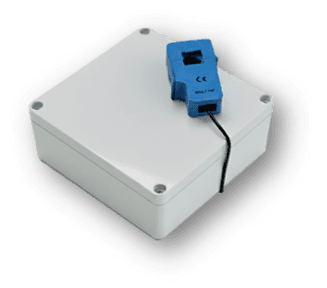

EvaraAMP IoT motor current and energy monitoring for pumps device

0 to 400 A
Current: ±1%
Accuracy: 1 to 60 s
Data interval

The problem

Why this exists.

Pumps are the heart of any water system. They fail from dry running, voltage spikes, overload or aging windings, and there is no early-warning system today. Operators only find out when the pump dies.

How it works

The operating principle.

EvaraAMP clamps a split-core current transducer around the line feeding the motor, with no circuit interruption. It tracks RMS current sub-second, spots abnormal signatures, and totals energy for billing and efficiency.

A split-core transformer closes around the existing supply cable, so current is read without breaking the circuit. A dry run has a signature long before the pump dies.

01
Clamp
A split-core current transformer closes around the existing supply line. The circuit is never broken.
02
Sample
A high-accuracy ADC tracks RMS current and waveform shape at sub-second resolution.
03
Diagnose
Dry-run, overload and abnormal current spikes each leave a distinct signature that raises an alert.
04
Total
Cumulative energy use feeds efficiency reporting and cost attribution in EvaraOne.

Capabilities

What it does.

Real-time monitoring

Live current, voltage, power and energy tracking.

Motor protection

Detects overload, underload, phase loss and imbalance.

Energy optimisation

Track consumption and cut cost per litre pumped.

Instant alerts

Notified by app, SMS or email the moment a fault appears.

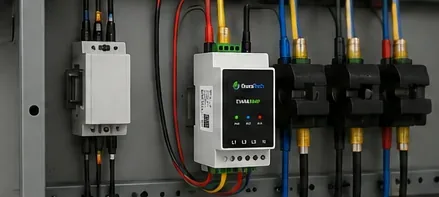

Easy installation

Compact DIN-rail or wall mount with a clip-on CT sensor.

Built for plant rooms

Flame-retardant ABS body, rated for industrial panels.

Where it's used

Built for these places.

Retrofit-first, so it installs onto infrastructure that is already there. No pipe cutting, no civil work, no permits.

Industrial motors & pumps
Water supply & distribution
HVAC systems
Manufacturing units
Agriculture irrigation systems
Commercial buildings
Solar pump applications

See it work

This is what EvaraOne shows for it.

A live simulation of the EvaraAMP tile in the platform. The reading ticks, the trace draws, and you can cause the fault it exists to catch.

EvaraOne· EvaraAMP · Pump P2, 15 HP

Line current

14.6A

Last 30 minutes14.6 A

Try it

Alerts

Nothing to report. Press a button above to cause a fault.

Explore the whole platform

Questions

About EvaraAMP.

Does installing EvaraAMP interrupt the circuit?: No. A split-core current transformer closes around the existing supply line, so the circuit is never broken.
What does it measure?: 3-phase current, voltage, power, power factor and energy, from 0 to 400 A with an external CT, at 1% typical accuracy, every 1 to 60 seconds.
What faults does it catch?: Overload, underload, phase loss and imbalance, with alerts by app, SMS or email the moment a signature appears.

Works with

Instruments deployed alongside it.
