IoT smart motorised valve for remote water controlEvaraValve

Remote control of your water flow

Turns a conventional pipeline into a connected, remotely controllable, data-driven distribution system.

How it works

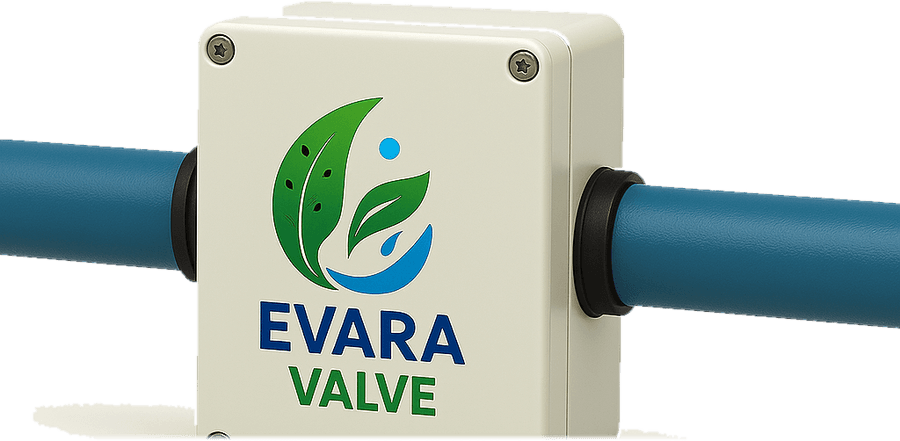

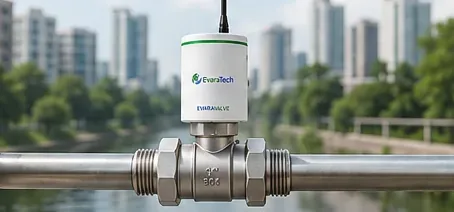

EvaraValve IoT smart motorised valve for remote water control device
DN15 to DN50
Sizes
5 to 8 s
Open or close
IP67
Protection

The problem

Why this exists.

Water distribution is managed by manually opening and closing valves across sites. It is slow, labour-intensive and error-prone. Operators cannot react quickly to demand, leaks or scheduling needs, and there is no record of who changed what.

How it works

The operating principle.

EvaraValve is a motorised valve actuator with metering built in. Rather than simply opening and closing, it measures consumption, automates supply on rules, detects abnormal usage, and reports to EvaraOne, enabling fair, transparent, automated billing.

EvaraValve12.4 m³/hmetered in-lineZone AZone BZone CSchedule06:00 open13:00 throttle22:00 closeremote open · throttle · close
Flow is metered as it passes, and each zone can be opened, throttled or closed on a schedule without anyone travelling to the site.

  1. 01

    Meter

    Inline sensing measures real-time flow and cumulative consumption per connection.

  2. 02

    Attribute

    Usage is resolved user-wise, time-wise and location-wise across a building or campus.

  3. 03

    Automate

    Rules and schedules open, close or throttle supply per zone without anyone on site.

  4. 04

    Detect

    Abnormal consumption and pipeline anomalies raise alerts and can trigger isolation.

Capabilities

What it does.

Remote control

Open or close from anywhere via dashboard or mobile app.

Automated operation

Schedule, automate and integrate with the rest of the site.

Leakage prevention

Instant shut-off limits water loss and damage.

Flow management

Accurate control for fair, efficient distribution.

Manual override

Easy local operation if power or network fails.

Rugged & reliable

Corrosion-resistant body built for long life in tough environments.

Where it's used

Built for these places.

Retrofit-first, so it installs onto infrastructure that is already there. No pipe cutting, no civil work, no permits.

  • Municipal water distribution
  • Irrigation & agriculture
  • Industrial water systems
  • Smart buildings & campuses
  • Leakage control zones
  • Tanker filling & transfer lines
  • Water treatment plants

See it work

This is what EvaraOne shows for it.

A live simulation of the EvaraValve tile in the platform. The reading ticks, the trace draws, and you can cause the fault it exists to catch.

EvaraOne· EvaraValve · Zone 3 inlet

Flow through valve

22L/min

Last 30 minutes22 L/min
Try it
Alerts
  • Nothing to report. Press a button above to cause a fault.
Explore the whole platform

Questions

About EvaraValve.

What sizes does EvaraValve come in?
DN15 (half inch) to DN50 (2 inch), BSP or NPT threaded, in stainless steel 304 or brass with a PTFE seal, rated to PN16.
What happens if power or network fails?
A manual override lets the valve be operated locally, and it draws under 3 W on standby and under 10 W while moving.
How fast does it operate?
Fully open or closed in 5 to 8 seconds, in any mounting orientation.

Works with

Instruments deployed alongside it.

Next product

EvaraAMP

IoT motor current and energy monitoring for pumps

All products

Ready to make every drop measurable?

Talk to the team building the operating system for water infrastructure, from a single tank to an entire smart city.
